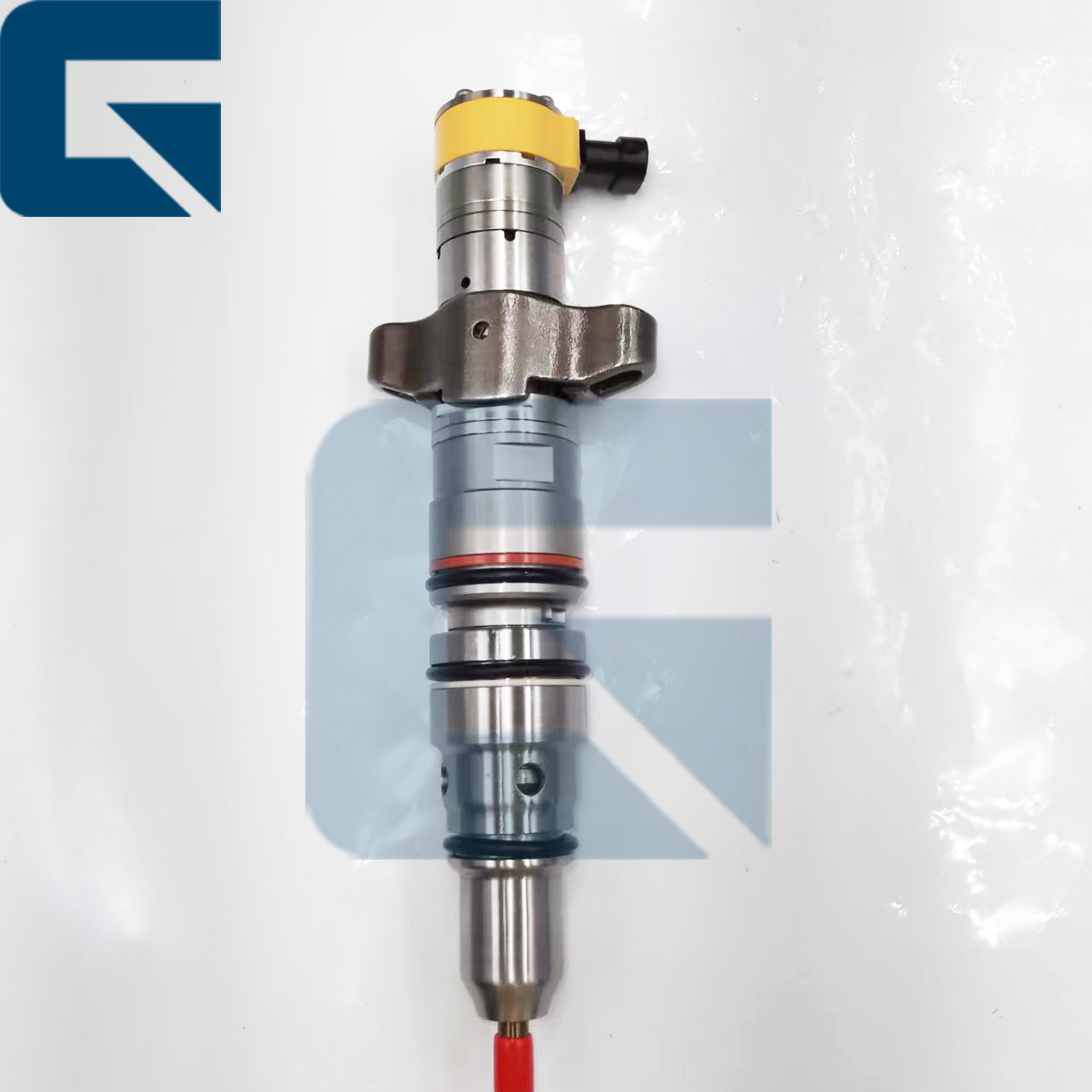

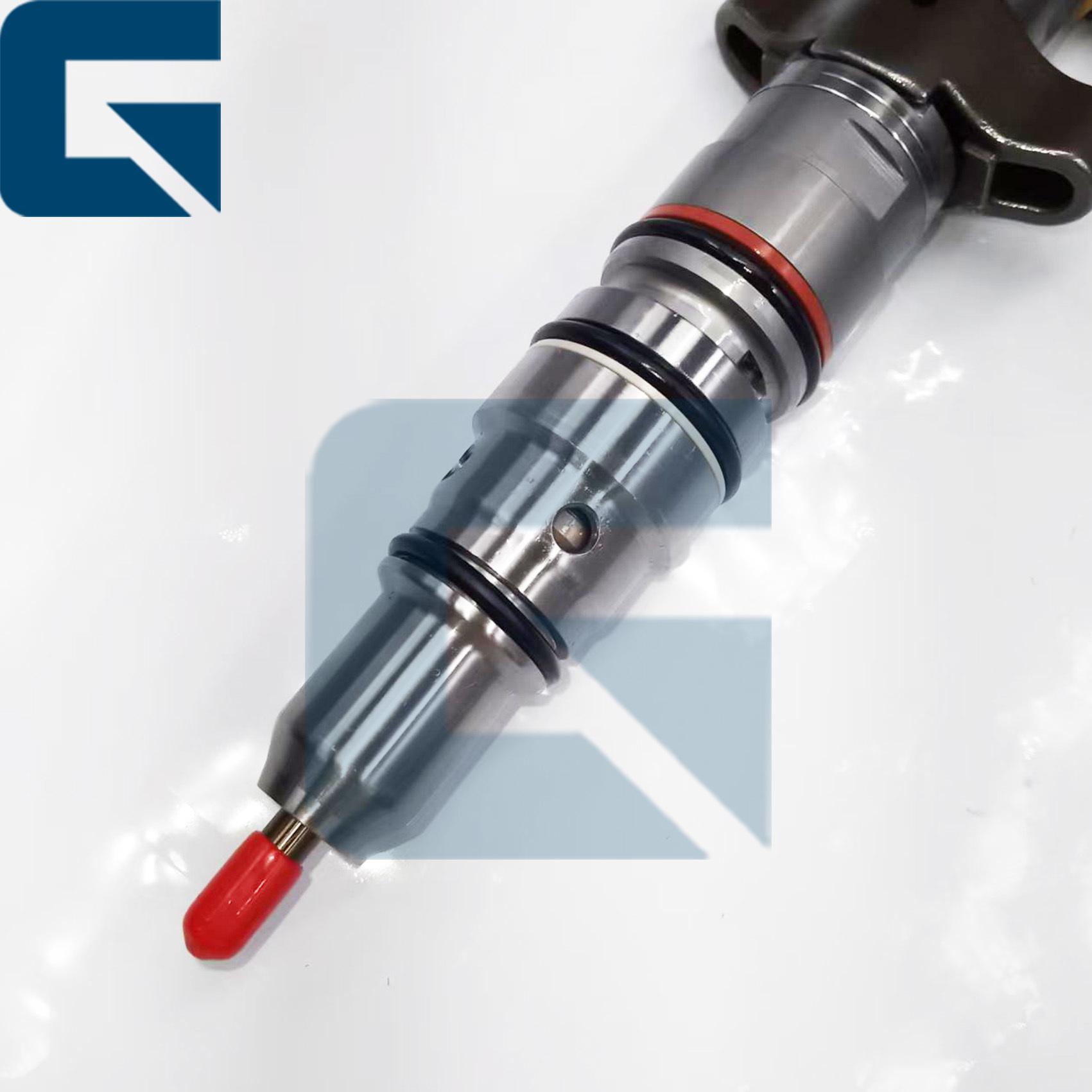

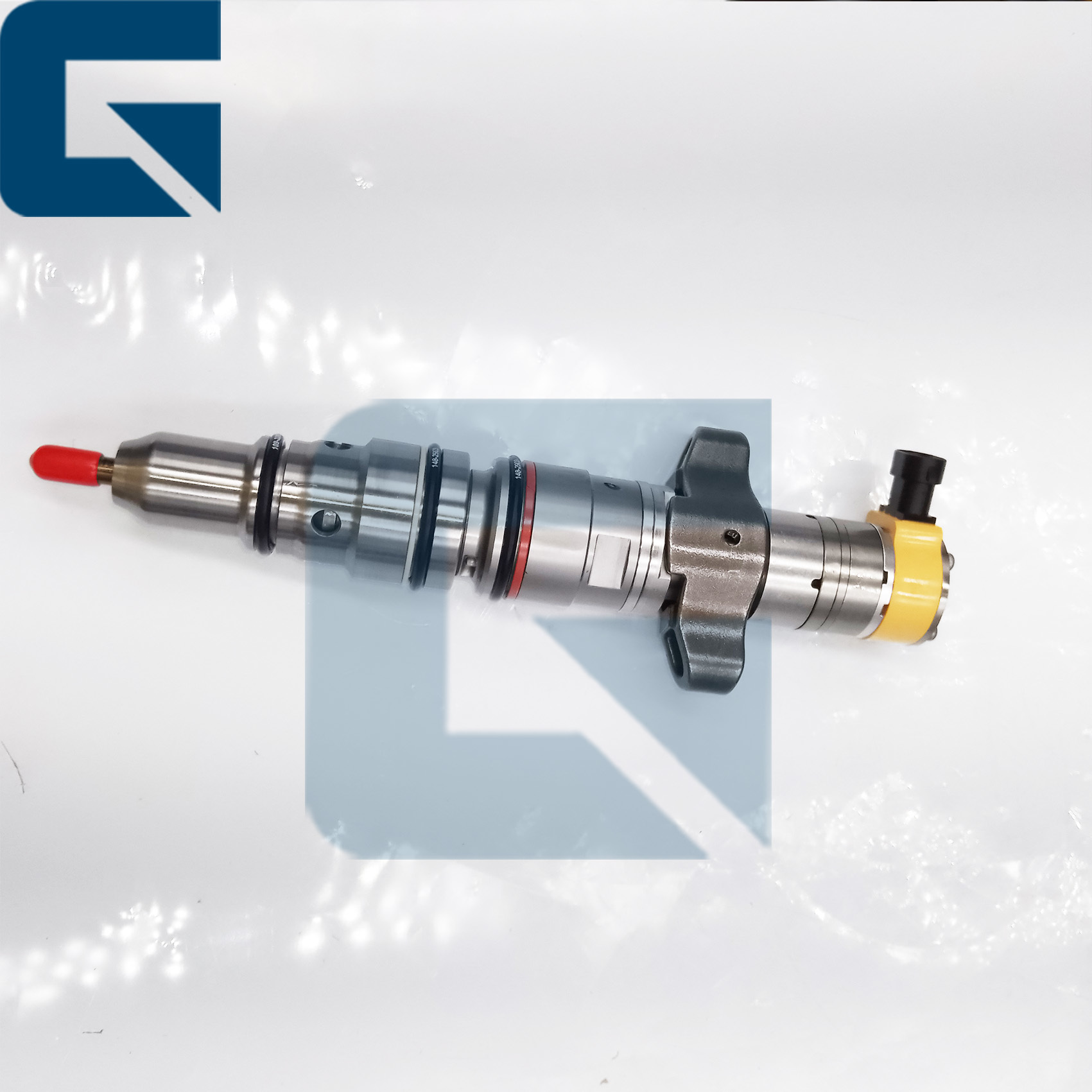

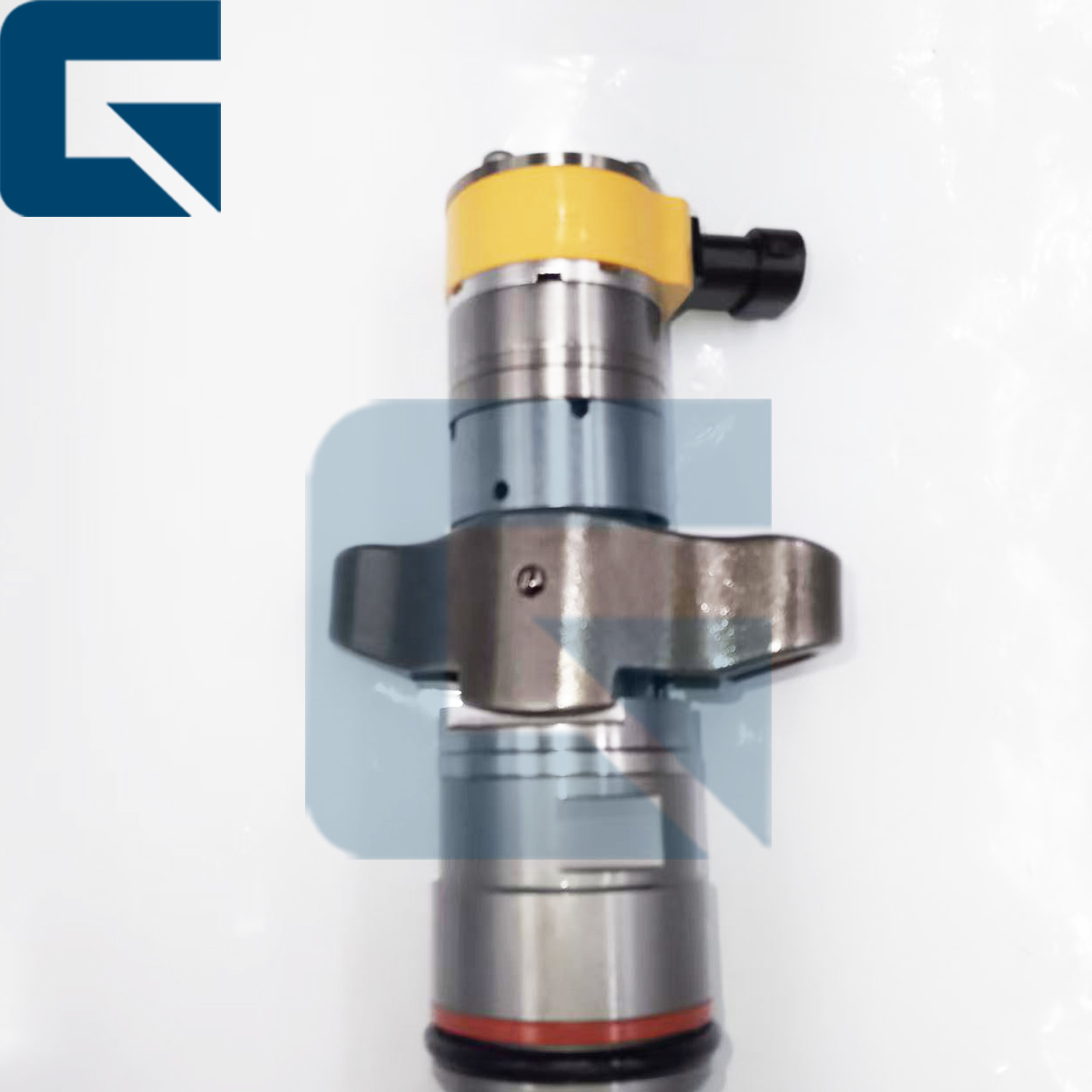

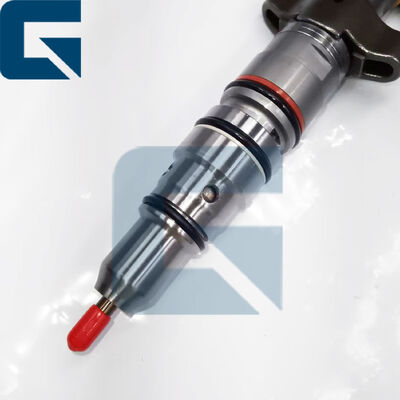

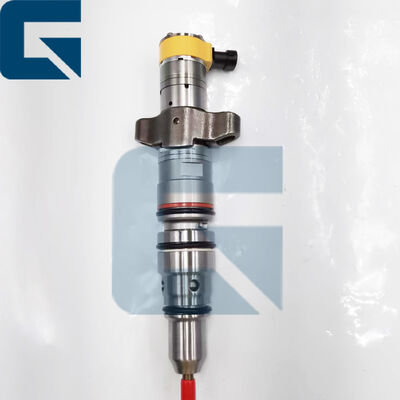

328-2574 3282574 C9 Engine Fuel Injector for E330D Excavator

328-2574 3282574 C9 Engine Fuel Injector for E330D Excavator
328-2574 3282574 C9 Engine Fuel Injector for E330D Excavator 328-2574 3282574 C9 Engine Fuel Injector for E330D Excavator 328-2574 3282574 C9 Engine Fuel Injector for E330D Excavator 328-2574 3282574 C9 Engine Fuel Injector for E330D Excavator
اطلاعات پایه
محل منبع: چین
نام تجاری: JIAJUE
شماره مدل: C9
مقدار حداقل تعداد سفارش: 1
قیمت: Please send mail or WhatsApp
جزئیات بسته بندی: 328-2574 3282574 انژکتور سوخت موتور C9 برای بیل مکانیکی E330D در بسته بندی استاندارد صادراتی تحت نیا
زمان تحویل: 1 روز کاری
شرایط پرداخت: L/C، D/A، D/P، T/T، وسترن یونیون
قابلیت ارائه: 1000 عدد در ماه
بهترین قیمت اکنون تماس بگیرید
اطلاعات تکمیلی
شماره قطعه: 328-2574 MOQ: 1
برجسته کردن:

C9 engine fuel injector,E330D excavator fuel injector,Diesel fuel injector with warranty

,

E330D excavator fuel injector

,

Diesel fuel injector with warranty

توضیحات محصول

328-2574 C9 Engine Fuel Injector for E330D Excavator
High-quality diesel fuel injector specifically designed for optimal performance and fuel efficiency. Part number: 268-1835
Product Specifications
Product NameFuel Injector
Part Number328-2574
Brand NameJIAJUE
ModelC9
ConditionBrand New
AvailabilityRich Stock
Approximate Weight1KG
Size (per unit)20cm x 5cm x 8cm
Delivery MethodsDHL, FedEx, TNT, UPS
Warranty3 months
ShipmentDispatched within 24-48 hours
Product Testing
328-2574 3282574 C9 Engine Fuel Injector for E330D Excavator 0
328-2574 3282574 C9 Engine Fuel Injector for E330D Excavator 1
Related Products
328-2574 3282574 C9 Engine Fuel Injector for E330D Excavator 2
Frequently Asked Questions
How do I install my fuel injector after purchasing it?
Please refer to the "Step-by-Step Installation Guide" on our product details page for detailed installation instructions.
What precautions should I take before installing my fuel injector?
The installation environment must be dust-free; lubricate the O-ring with clean machine oil before installation to prevent cutting; ensure the O-ring is installed correctly.
Why is my engine still unusable after replacing the fuel injector?
This is common due to air trapped in the high-pressure oil rail. Cycle the engine in short bursts (no more than 30 seconds) to purge air. It may take several attempts to stabilize pressure.
Is my device compatible with this part number of fuel injectors?
If unsure about compatibility, send us your Engine Serial Number (ESN) for free verification.
How to determine if your fuel injectors need replacing?
  • Cylinder Cut-out Test: Using diagnostic software (ET), shut off cylinders one by one and observe engine speed fluctuations
  • Fuel Rail Pressure Test: Check for internal leaks preventing system from building critical starting pressure
  • Back-leakage Test: Excessive back-leakage indicates severe wear of internal control valve assembly
  • Visual Inspection: Inspect fuel injector nozzles for carbon buildup, blockage, or corrosion
How long will it take to receive my package after payment?
Delivery time depends on your country, region, and customs clearance. Contact us with your address and postal code for shipping costs and estimated delivery time.
Step-by-Step Installation Guide
HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.
  1. Preparation: Clean the injector bores thoroughly. Ensure no carbon debris, old O-rings, or fuel/oil residue at the bottom of the seat. Inspect the injector sleeve for pitting or erosion.
  2. Lubrication: Apply clean engine oil to the three O-rings and backup rings. Never use grease - only clean engine oil ensures seals slide in without tearing.
  3. Seating the Injector: Push the injector down firmly by hand until you feel it "seat." Install the hold-down clamp and bolt.
  4. Torque Specifications: Tighten the bolt to 30 N⋅m±7 N⋅m (22 lb-ft). Note: Over-tightening can crack the injector body; under-tightening causes combustion gas leakage.
  5. Trim Code Programming: Locate the 6-digit alphanumeric code on the top of the injector solenoid. Use ET (Electronic Technician) software to program this code into the ECM for precise fuel delivery synchronization.
Troubleshooting Guide
Issue Root Cause Solution
Black Smoke Poor spray atomization or stuck needle valve causing dripping Inspect the air filter
Hard Start Internal leakage in injector leading to insufficient starting oil pressure Inspect injector O-rings and internal seals
Engine Misfire Faulty solenoid valve coil or worn internal valve components Inspect wiring harness connections and replace damaged injectors
