خانه > محصولات> تزریق سوخت دیزل> 328-2574 Fuel Injector 3282574 Diesel Injector for Engine C9

328-2574 Fuel Injector 3282574 Diesel Injector for Engine C9

328-2574 Fuel Injector 3282574 Diesel Injector for Engine C9
328-2574 Fuel Injector 3282574 Diesel Injector for Engine C9 328-2574 Fuel Injector 3282574 Diesel Injector for Engine C9 328-2574 Fuel Injector 3282574 Diesel Injector for Engine C9 328-2574 Fuel Injector 3282574 Diesel Injector for Engine C9
اطلاعات پایه
محل منبع: چین
نام تجاری: JIAJUE
شماره مدل: C9
مقدار حداقل تعداد سفارش: 1
قیمت: Please send mail or WhatsApp
جزئیات بسته بندی: 328-2574 انژکتور سوخت 3282574 انژکتور دیزل برای موتور C9 در بسته بندی استاندارد صادراتی تحت نیاز مشت
زمان تحویل: 1 روز کاری
شرایط پرداخت: L/C، D/A، D/P، T/T، وسترن یونیون،
قابلیت ارائه: 1000 عدد در ماه
بهترین قیمت اکنون تماس بگیرید
اطلاعات تکمیلی
شماره قطعه: 328-2574 MOQ: 1
برجسته کردن:

328-2574 diesel fuel injector for C9 engine

,

C9 engine diesel injector 3282574

,

3282574 fuel injector replacement part

توضیحات محصول

328-2574 Fuel Injector for C9 Engine
Product Specifications
Product Name Fuel Injector
Part Number 328-2574
Brand Name JIAJUE
Engine Model C9
Availability Rich Stock
Approximate Weight 3KG
Dimensions (per unit) 20cm x 5cm x 8cm
Delivery Methods DHL, FedEx, TNT, UPS
Warranty 3 months
Shipment Dispatched within 24-48 hours

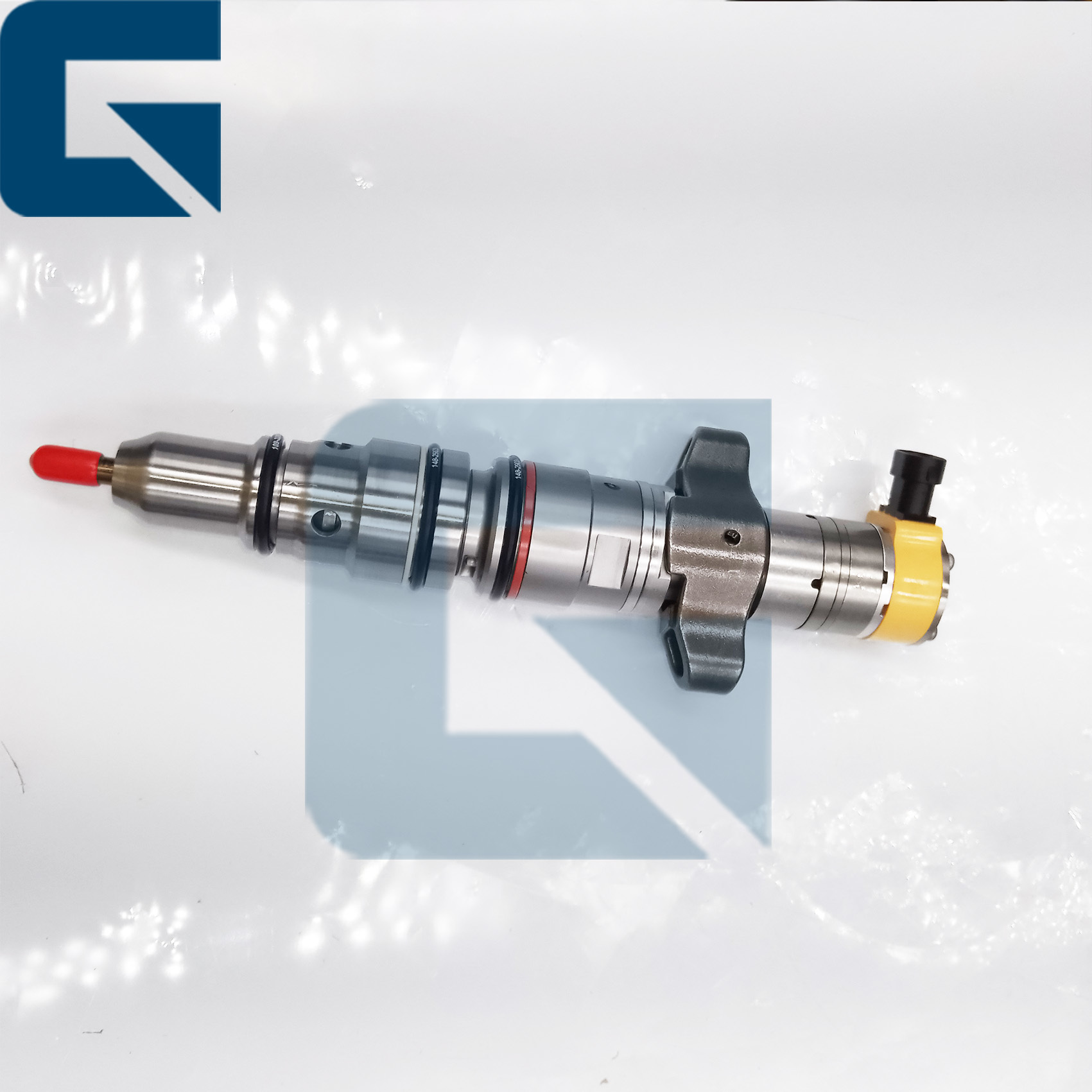

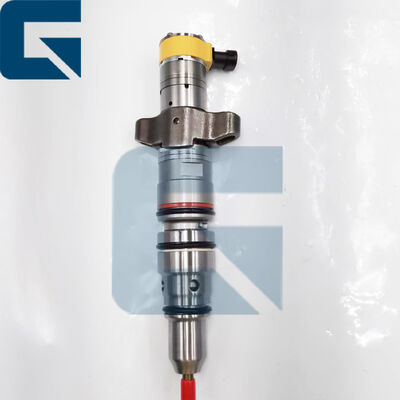

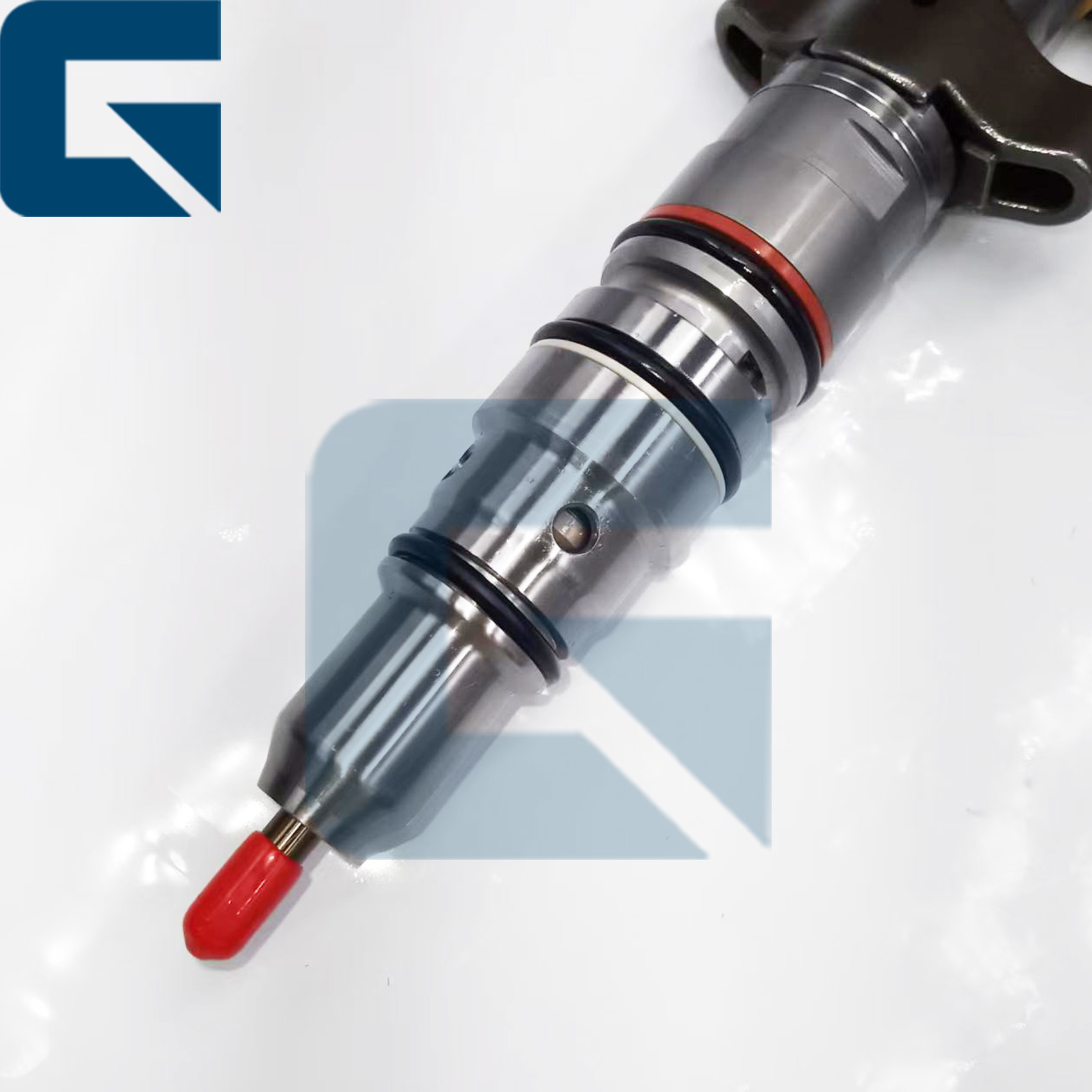

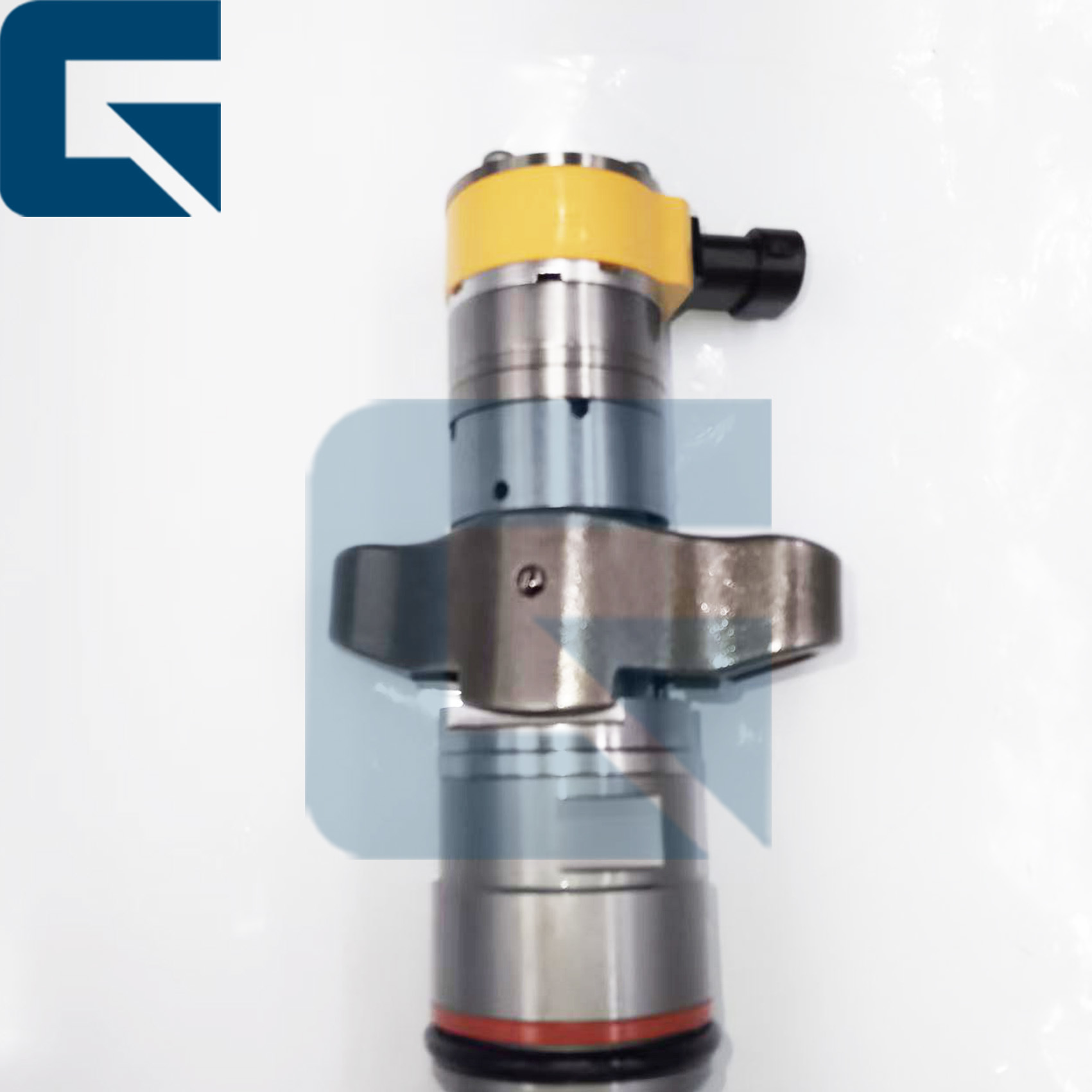

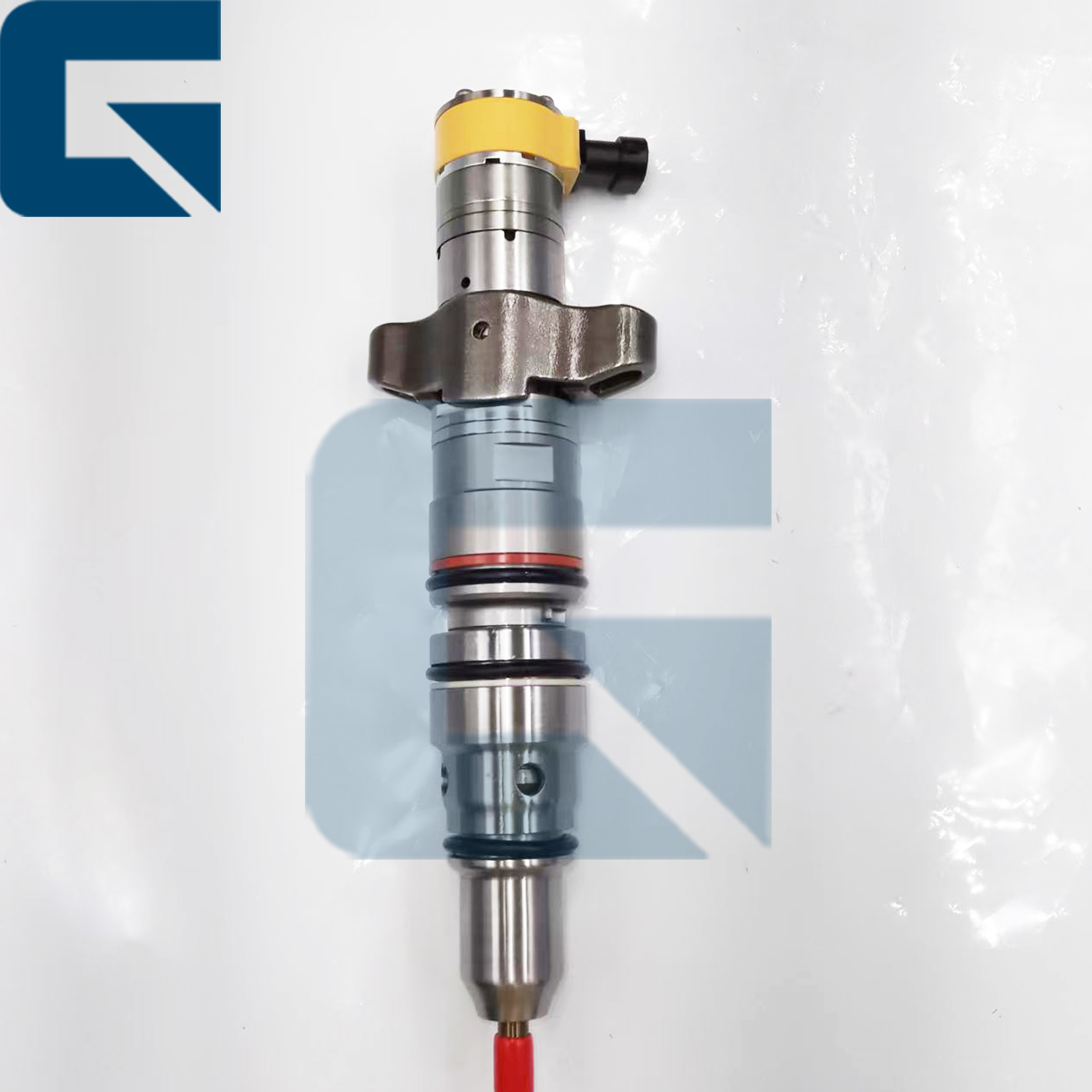

Product Photos & Testing
328-2574 Fuel Injector 3282574 Diesel Injector for Engine C9 0 328-2574 Fuel Injector 3282574 Diesel Injector for Engine C9 1 328-2574 Fuel Injector 3282574 Diesel Injector for Engine C9 2 328-2574 Fuel Injector 3282574 Diesel Injector for Engine C9 3
Related Products
328-2574 Fuel Injector 3282574 Diesel Injector for Engine C9 4
Frequently Asked Questions
Q1: How do I install my fuel injector after purchasing it?
Please refer to the "Step-by-Step Installation Guide" on our product details page, which contains detailed installation instructions.
Q2: What precautions should I take before installing 328-2574 fuel injector?
The installation environment must be dust-free; lubricate the O-ring with clean machine oil before installation to prevent oil leakage; ensure the O-ring is installed correctly.
Q3: Why is my engine still unusable after replacing the fuel injector?
This is commonly due to air trapped in the high-pressure oil rail. Cycle the engine in short bursts (no more than 30 seconds) to purge air. It may take several attempts to stabilize pressure.
Q4: Is my device compatible with this part number of fuel injectors?
If you're unsure about compatibility, please send us your Engine Serial Number (ESN) for free verification.
Q5: How to determine if your fuel injectors need replacing?
  • Cylinder Cut-out Test: Using diagnostic software (ET), shut off cylinders one by one and observe engine speed fluctuations to locate faulty cylinders.
  • Fuel Rail Pressure Test: Check for internal leaks preventing system from building critical starting pressure.
  • Back-leakage Test: Excessive back-leakage indicates severe wear of internal control valve assembly.
  • Visual Inspection: Inspect fuel injector nozzles for carbon buildup, blockage, or corrosion.
Q6: How long will it take to receive my package after payment?
Delivery time depends on your country/region and customs clearance. Contact us with your address and postal code for shipping costs and estimated delivery time.
Step-by-Step Installation Guide
HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.
1. Preparation
Clean the injector bores thoroughly. Ensure no carbon debris, old O-rings, or fuel/oil residue at the bottom of the seat. Inspect the injector sleeve for pitting or erosion.
2. Lubrication
Apply clean engine oil to the three O-rings and backup rings.
Never use grease. Only use clean engine oil to ensure seals slide in without tearing.
3. Seating the Injector
Push the injector down firmly by hand until you feel it "seat." Install the hold-down clamp and bolt.
4. Torque Specifications
Tighten the bolt to 30 N⋅m±7 N⋅m (22 lb-ft).
Over-tightening can crack the injector body; under-tightening causes combustion gas leakage.
5. Trim Code Programming
Locate the 6-digit alphanumeric code on the top of the injector solenoid. Use ET (Electronic Technician) software to program this code into the ECM for precise fuel delivery synchronization.
Troubleshooting Guide
Issue Root Cause Solution
Black Smoke Poor spray atomization or stuck needle valve causing dripping Inspect the air filter
Hard Start Internal leakage in injector leading to insufficient starting oil pressure Inspect injector O-rings and internal seals
Engine Misfire Faulty solenoid valve coil or worn internal valve components Inspect wiring harness connections and replace damaged injectors
