65.10101-7090 Fuel Injector for DB58 Engine

65.10101-7090 Fuel Injector for DB58 Engine
65.10101-7090 Fuel Injector for DB58 Engine 65.10101-7090 Fuel Injector for DB58 Engine 65.10101-7090 Fuel Injector for DB58 Engine 65.10101-7090 Fuel Injector for DB58 Engine
اطلاعات پایه
محل منبع: چین
نام تجاری: jiajue
شماره مدل: 65.10101-7090
مقدار حداقل تعداد سفارش: 1 قطعه
قیمت: 25USD
زمان تحویل: 1-3 روز کاری
شرایط پرداخت: T/T
قابلیت ارائه: 1000 عدد در ماه
بهترین قیمت اکنون تماس بگیرید
اطلاعات تکمیلی
برجسته کردن:

DB58 engine fuel injector,Diesel fuel injector 65.10101-7090,Fuel injector with warranty

,

Diesel fuel injector 65.10101-7090

,

Fuel injector with warranty

توضیحات محصول

65.10101-7090 Fuel Injector for DB58 Engine
High-quality fuel injector specifically designed for DB58 engines, ensuring optimal performance and reliability.
Product Specifications
Product Name Fuel Injector
Part Number XKDE-01455
Brand Name JIAJUE
Model Compatibility DB58
Condition New
Availability Rich Stock
Approximate Weight 1KG
Size (per unit) 12cm x 8cm x 5cm
Delivery Time Usually delivered within 1-3 days after payment
Product Images

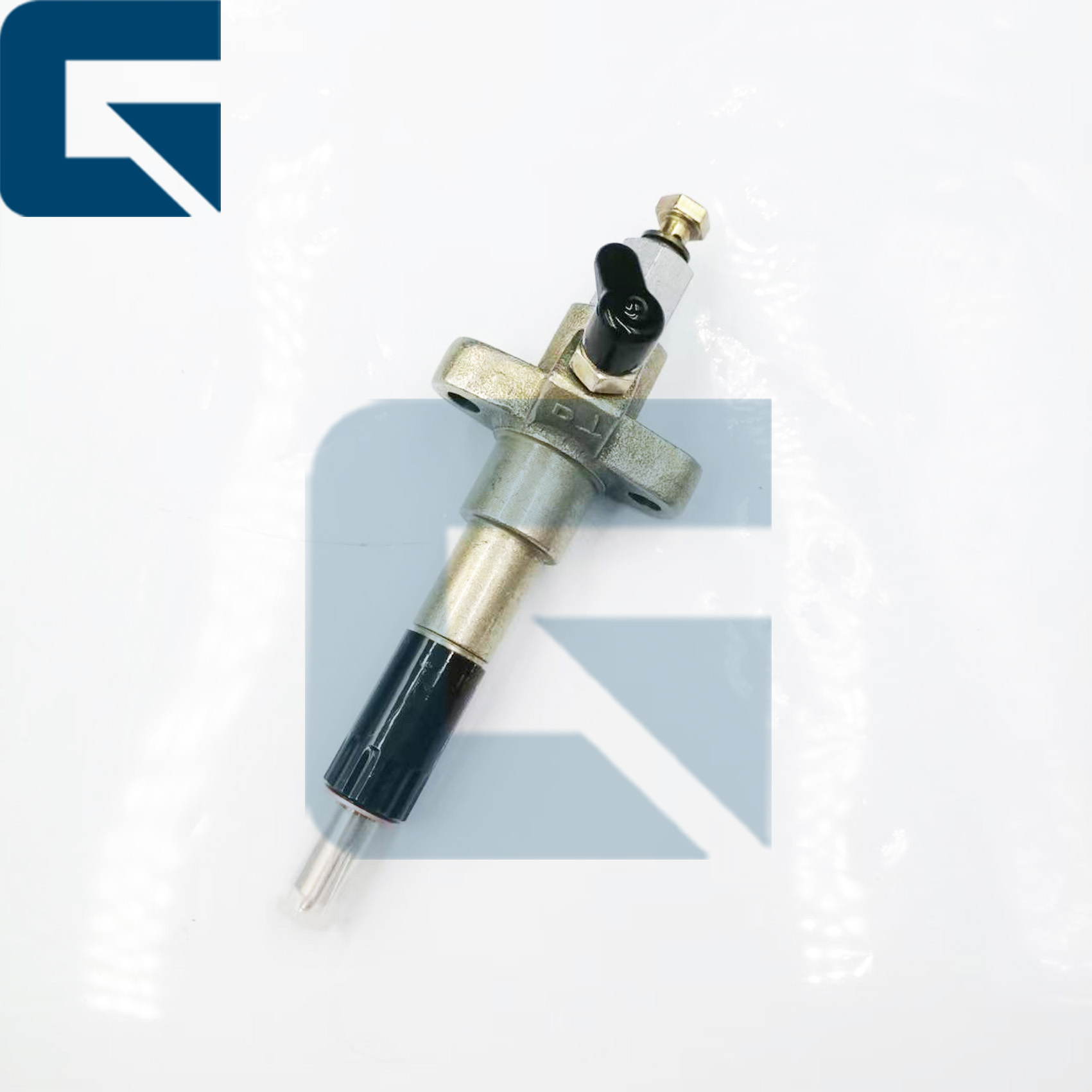

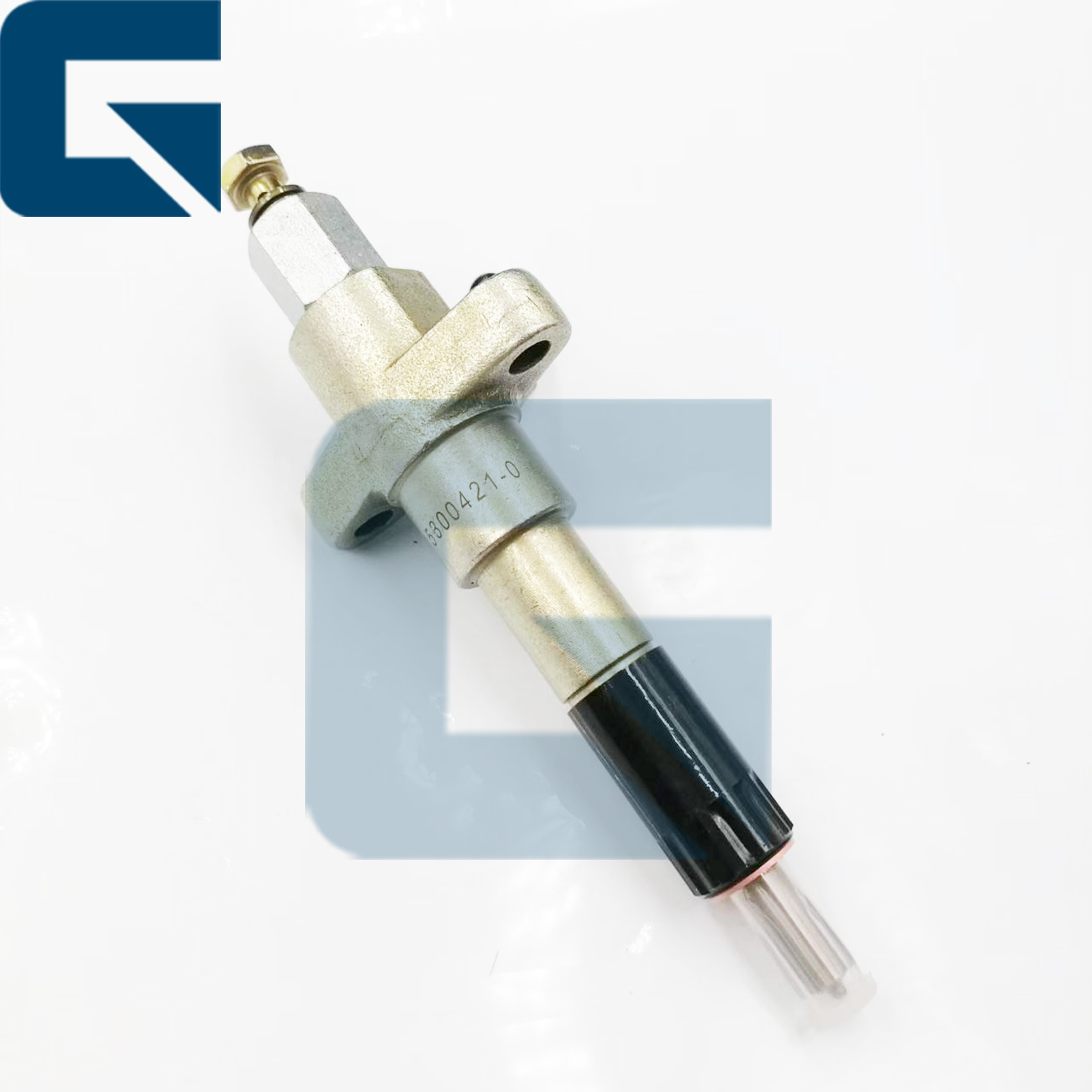

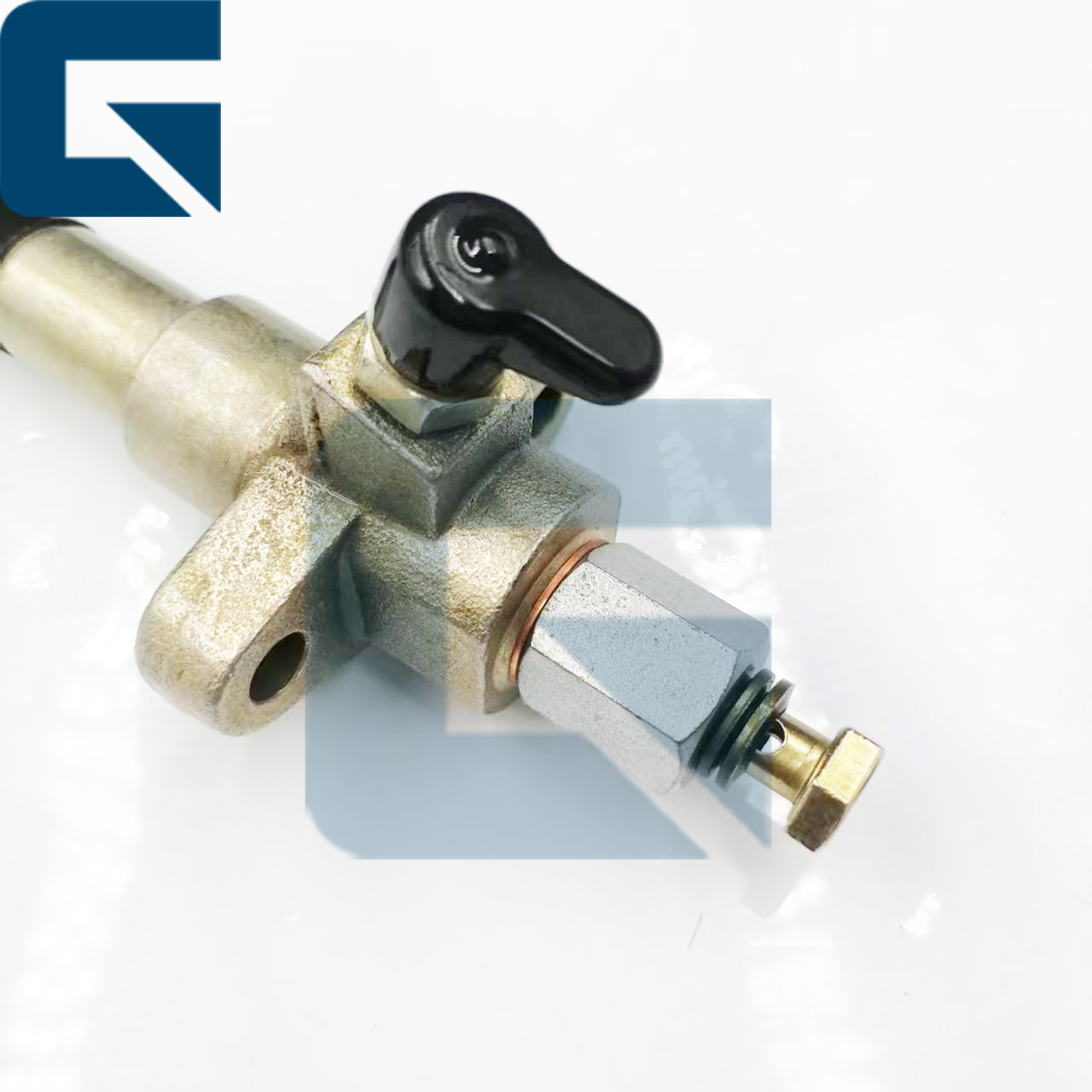

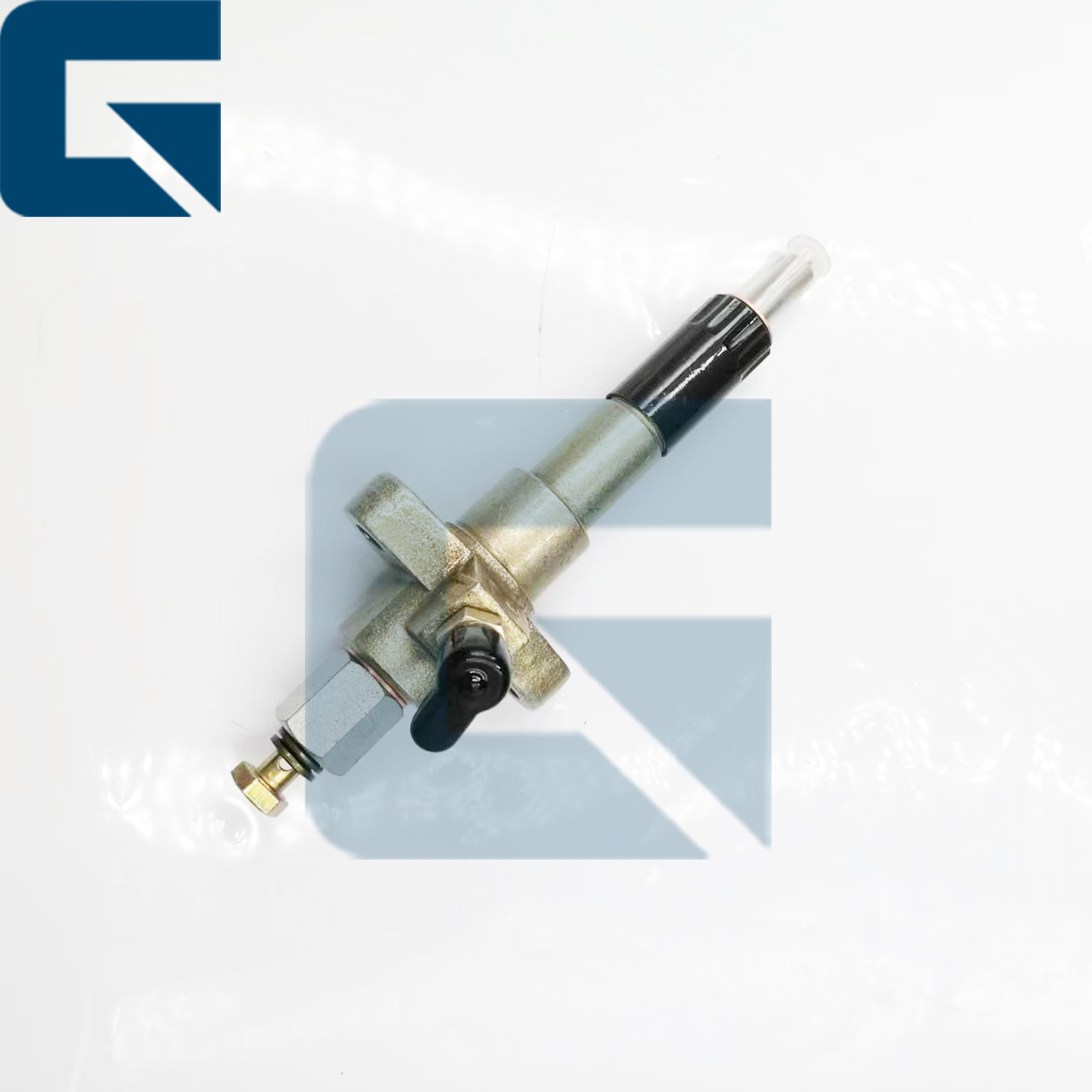

65.10101-7090 Fuel Injector for DB58 Engine 0 65.10101-7090 Fuel Injector for DB58 Engine 1 65.10101-7090 Fuel Injector for DB58 Engine 2
Frequently Asked Questions
How do I install my fuel injector after purchasing it?
Please refer to the "Step-by-Step Installation Guide" on our product details page, which contains detailed installation instructions.
What precautions should I take before installing my fuel injector?
The installation environment must be dust-free; lubricate the O-ring with clean machine oil before installation to prevent oil leakage; and ensure the O-ring is installed correctly.
Why is my engine still unusable after replacing the fuel injector?
This is commonly due to air trapped in the high-pressure oil rail. Cycle the engine in short bursts (no more than 30 seconds) to purge air. It may take several attempts to stabilize pressure.
Is my device compatible with this part number of fuel injectors?
If unsure about compatibility, please provide your Engine Serial Number (ESN) for free verification.
How to determine if your fuel injectors need replacing?
  • Cylinder Cut-out Test: Using diagnostic software (ET), shut off cylinders one by one and observe engine speed fluctuations to locate faulty cylinders.
  • Fuel Rail Pressure Test: Check for internal leaks preventing system from building critical starting pressure.
  • Back-leakage Test: Excessive back-leakage indicates severe wear of internal control valve assembly.
  • Visual Inspection: Inspect fuel injector nozzles for carbon buildup, blockage, or corrosion.
How long will it take to receive my package after I make the payment?
Delivery time depends on your country, region, and customs clearance. Contact us with your address and postal code for shipping costs and estimated delivery time.
Step-by-Step Installation Guide
Pro-Tip: HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.
  • Preparation: Clean the injector bores thoroughly. Ensure there is no carbon debris, old O-rings, or fuel/oil residue at the bottom of the seat. Inspect the injector sleeve for any signs of pitting or erosion.
  • Lubrication: Apply clean engine oil to the three O-rings and the backup rings. Never use grease. Only use clean engine oil to ensure the seals slide in without tearing.
  • Seating the Injector: Push the injector down firmly by hand until you feel it "seat." Install the hold-down clamp and bolt.
  • Torque Specifications: Tighten the bolt to 30 N⋅m±7 N⋅m (22 lb-ft). Over-tightening can crack the injector body; under-tightening causes combustion gas leakage.
  • Trim Code Programming: Locate the 6-digit alphanumeric code on the top of the injector solenoid. Use ET (Electronic Technician) software to program this code into the ECM to ensure precise fuel delivery synchronization.
Troubleshooting Guide
Issue Root Cause Solution
Black Smoke Poor spray atomization or stuck needle valve causing dripping Inspect the air filter
Hard Start Internal leakage in injector leading to insufficient starting oil pressure Inspect injector O-rings and internal seals
Engine Misfire Faulty solenoid valve coil or worn internal valve components Inspect wiring harness connections and replace damaged injectors
Manufacturer Information
65.10101-7090 Fuel Injector for DB58 Engine 3
JIAJUE specializes in manufacturing high-quality industrial components with state-of-the-art production facilities and rigorous quality control processes.
Industry Exhibitions
65.10101-7090 Fuel Injector for DB58 Engine 4 65.10101-7090 Fuel Injector for DB58 Engine 5
Packaging & Shipping
65.10101-7090 Fuel Injector for DB58 Engine 6 65.10101-7090 Fuel Injector for DB58 Engine 7
All products are carefully packaged to ensure safe delivery and are shipped through reliable logistics partners for timely arrival.
