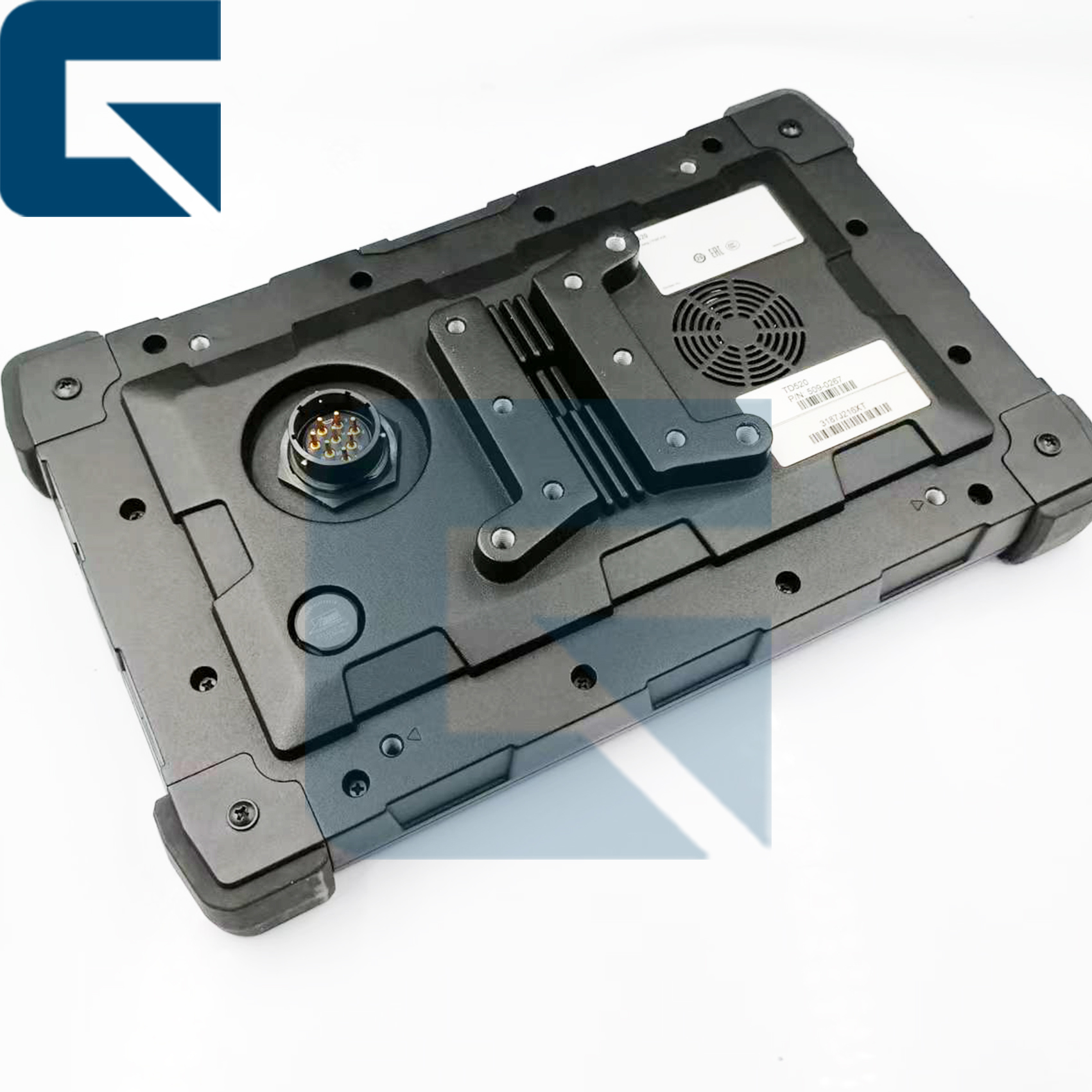

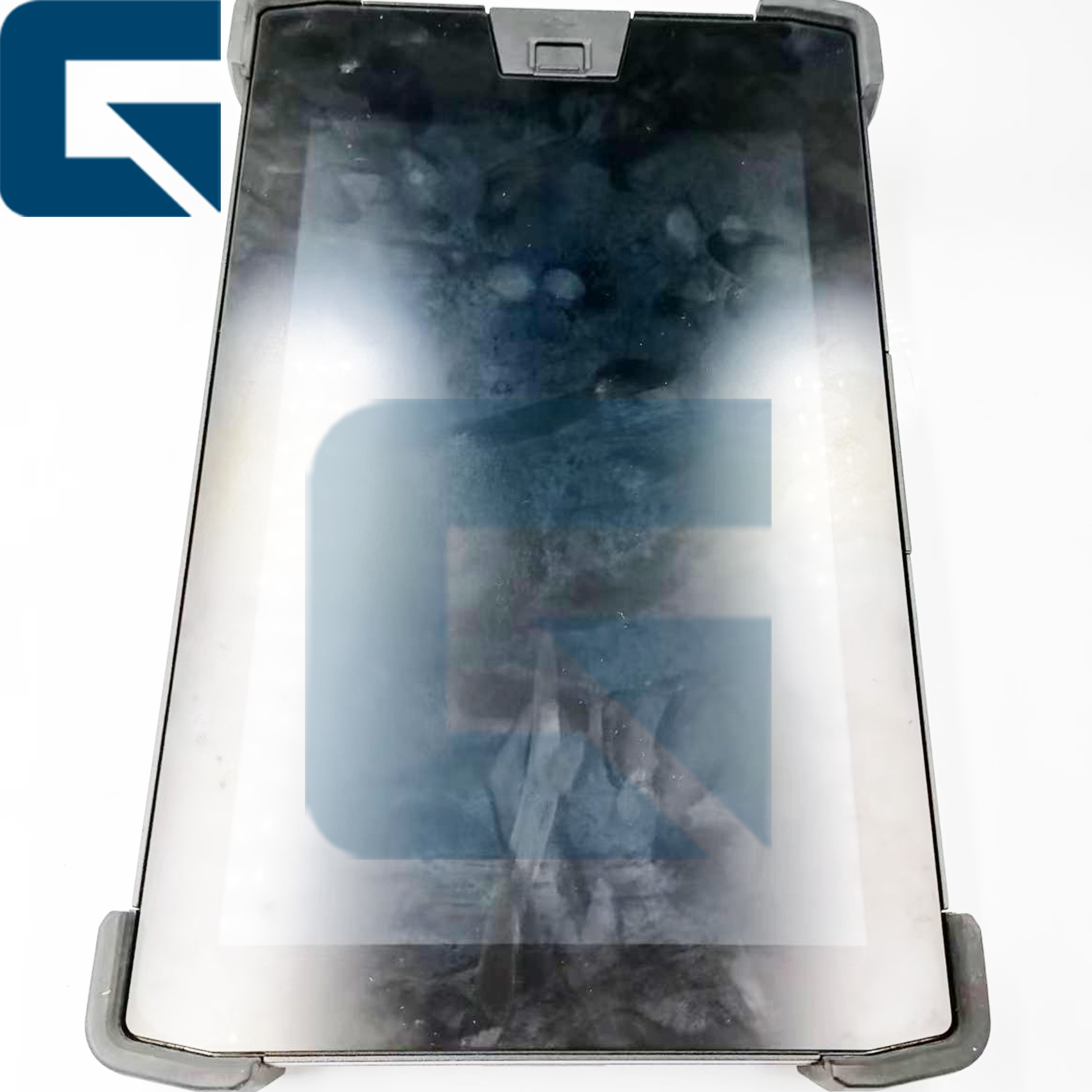

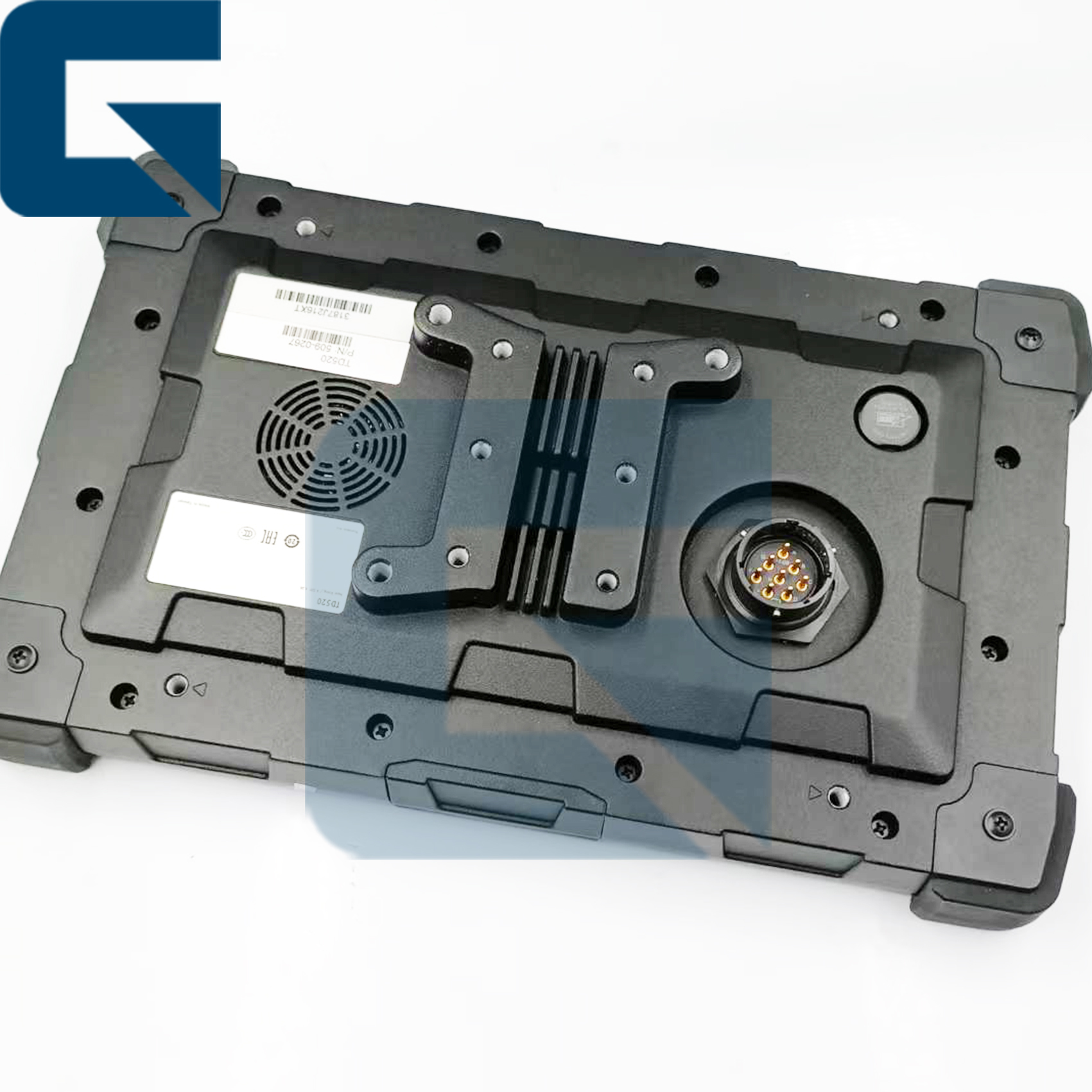

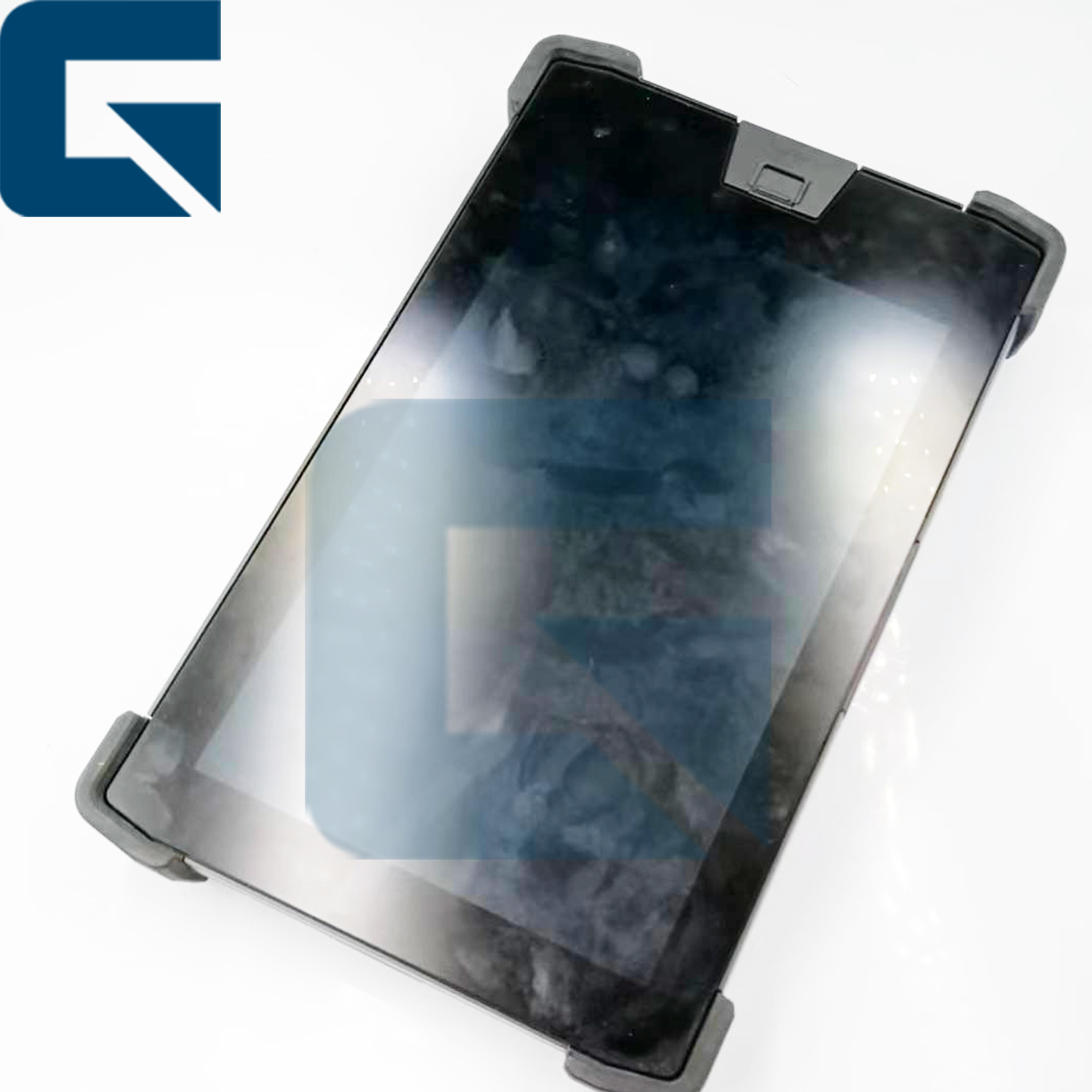

509-0267 5090267 Monitor Display for E340 Excavator

509-0267 5090267 Monitor Display for E340 Excavator

1. Power On:
   Ensure the excavator's main power is turned on.
2. Visual Inspection:
   Check the monitor for physical damage, such as cracks or non-functional buttons.
3. Check Display:
   Verify that the monitor screen lights up and displays information clearly without distortion or flickering.
4. Test Functionality:
   • Check if all buttons and touchscreen functions (if applicable) respond correctly to inputs.
   • Navigate through different menus and settings to ensure the monitor controls all essential functions of the excavator.
5. Connection Test:
   • If the monitor interfaces with other systems (e.g., cameras, sensors), ensure these connections are secure and operational.
   • Test any integrated features like audio output or external video inputs if present.
6. Brightness and Contrast:
   Adjust brightness and contrast settings to ensure they function properly and provide adequate visibility in different lighting conditions.
7. Document Findings:
   Record any issues observed during testing and note if the monitor requires further attention or replacement.
8. Consultation:
   If the monitor displays persistent issues or malfunctions, consult with a qualified technician or the manufacturer's support team for guidance on repairs or replacement.

By following these steps, you can effectively test the monitor of an excavator to ensure it is functioning correctly and contributing to safe and efficient operations.
